DLS Reference Line CD-RC50 – 5 Cm Hochtöner-Lautsprecher Mit 80 Watt (RMS: 50 Watt)

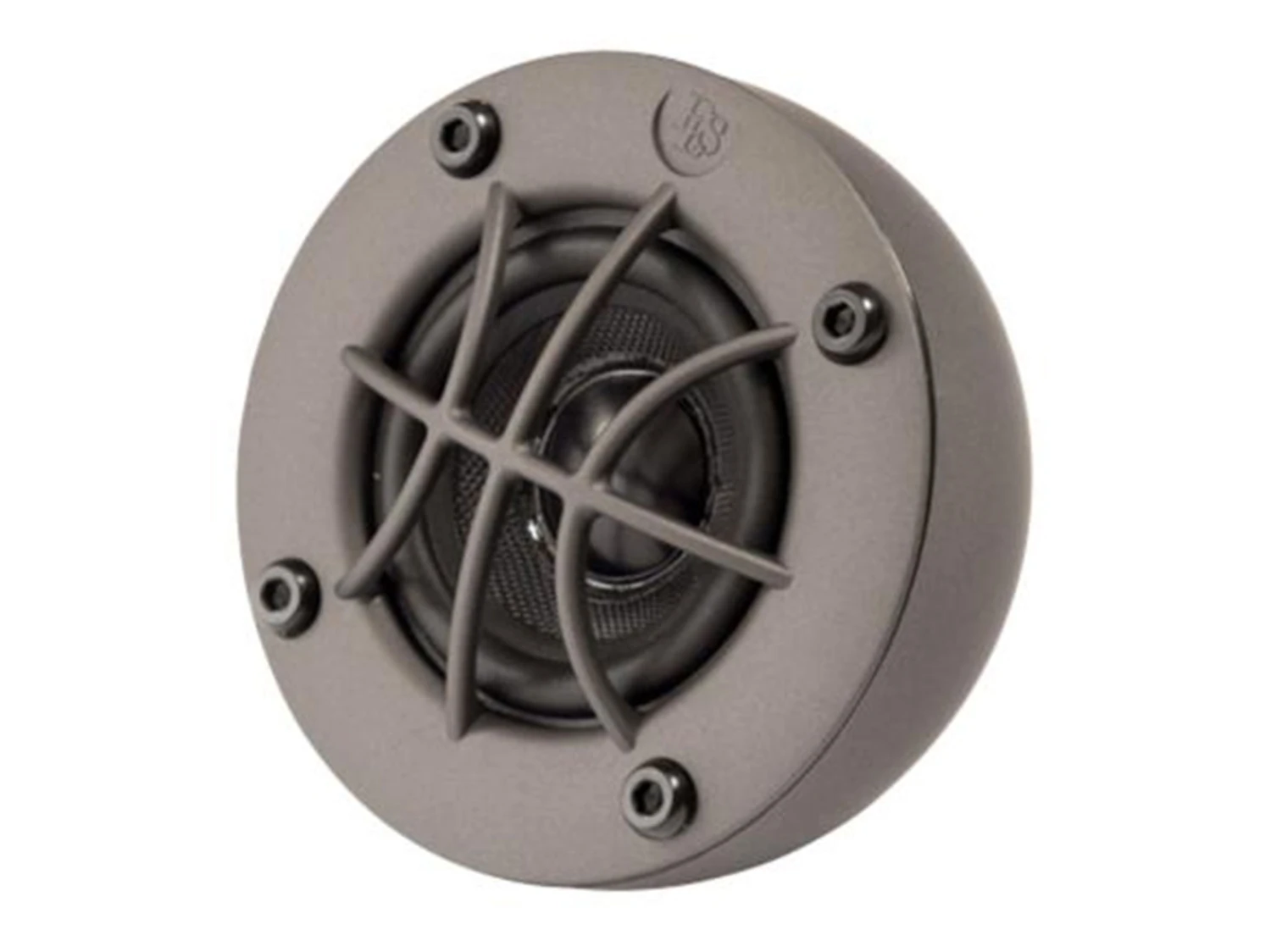

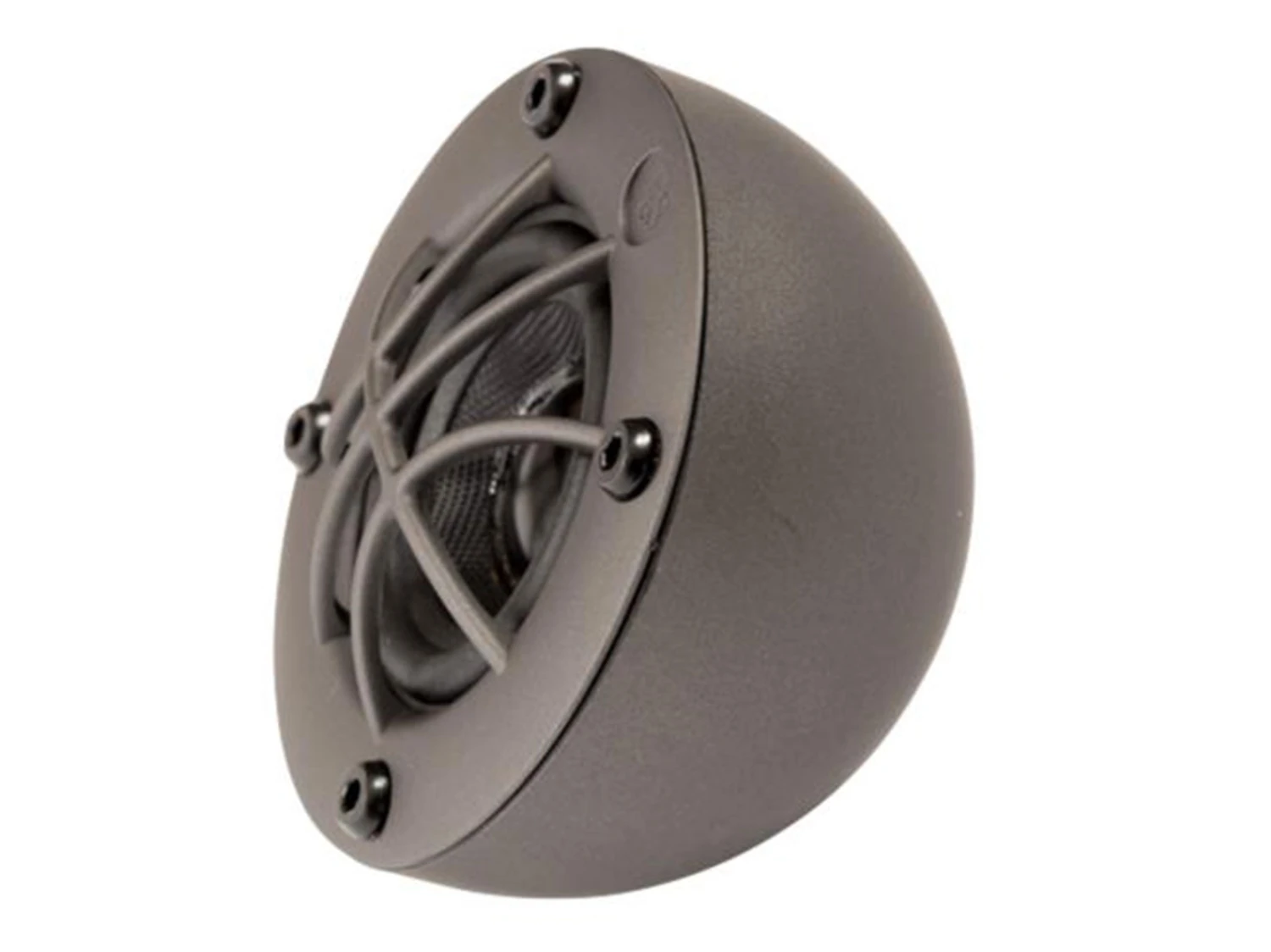

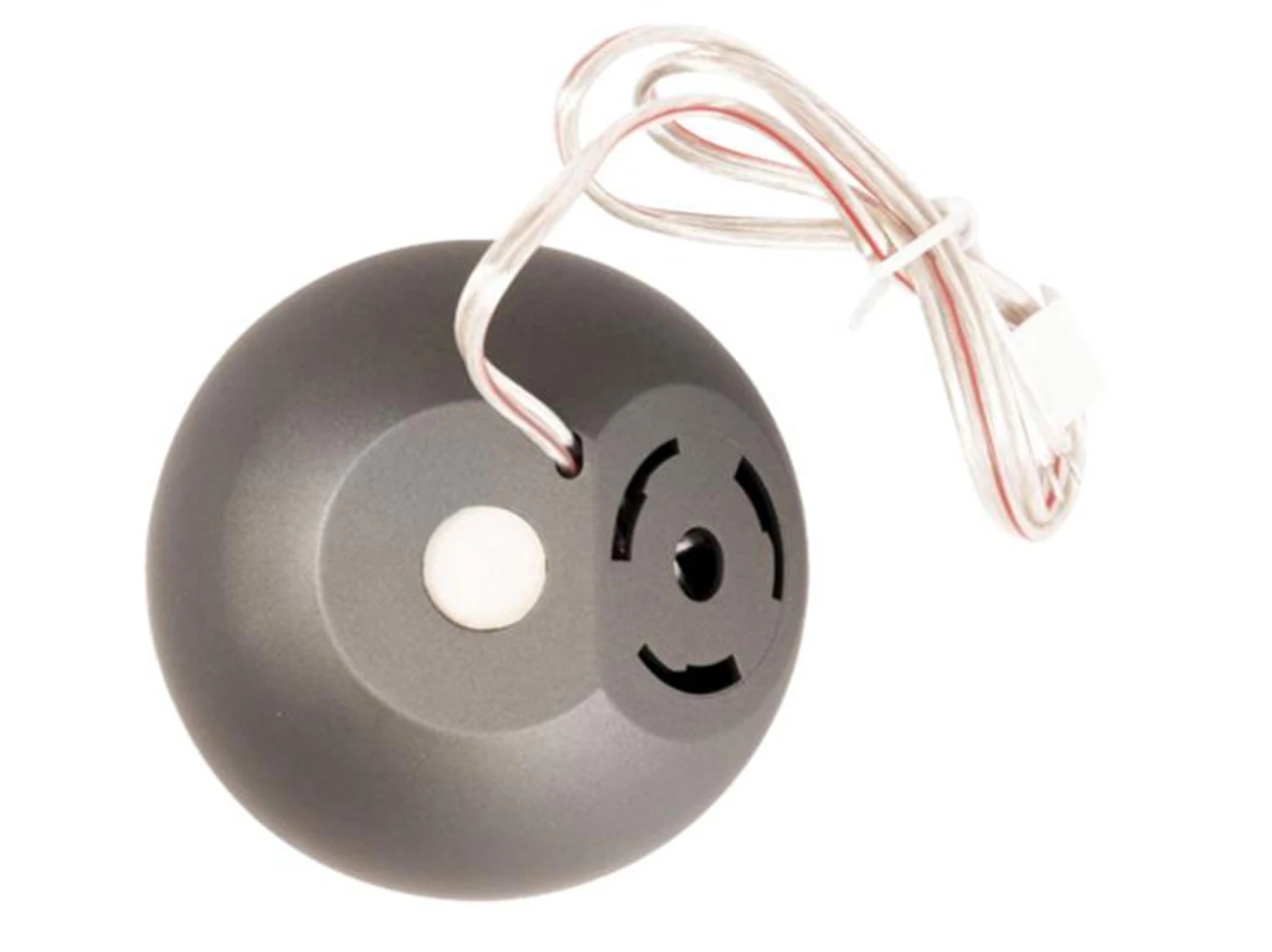

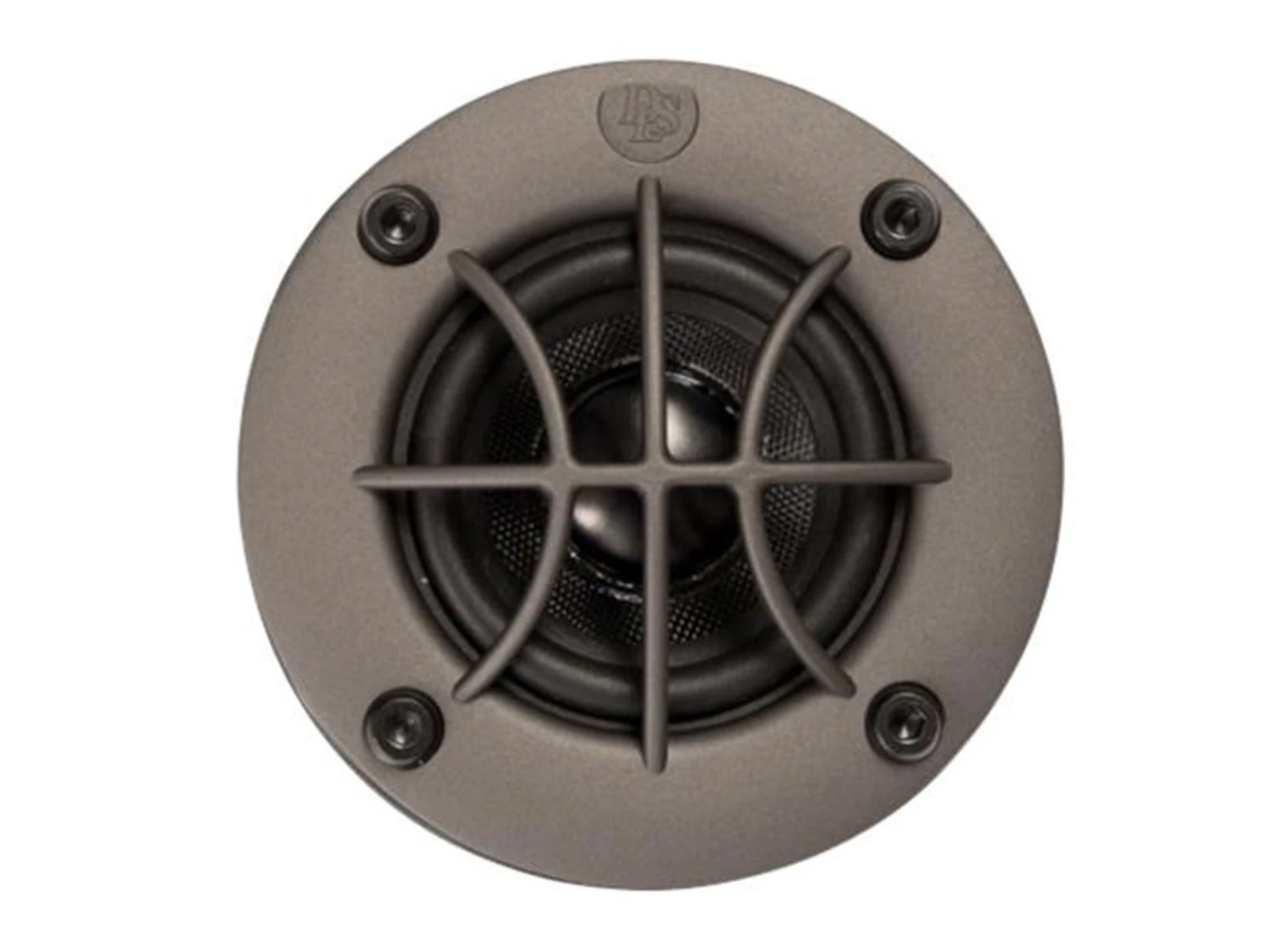

Reference series tweeter RC50 is a 50 mm wide band tweeter with chamber.
Install on the dashboard or A-pillar directed on axis.
Can be installed without chamber recessed in a panel, but the chamber gives a better sound quality.
To be used in active mode.
When connected in active mode use High Pass X-over set between 800 –
1500 Hz /18 dB slope, and Low Pass x-over set to 18 kHz / 6 dB slope Connect with a good amplifier like DLS CC series or better.

Technische Daten

• 50 mm TWEETER – Breitband
• Ausgangsleistung: 50 W RMS / 80 W max
• Impedanz: 4 Ohm
• Frequenzbereich: 500 – 22000 Hz
• Rec. frequency range 1500 Hz – 22 kHz
• Fs – Resonant frequency 155 Hz
• Sensitivity 83,2 dB (1W/1m)
• Magnet size 32 mm (1,26″)
• Outer diameter 84 mm (3,3″)
• Mounting depth 45 mm / 37 mm ( 1,77 / 1,46″)
• Mounting hole 65 mm (2,56″)
• Inhalt: 1 Paar (2 Stück)
